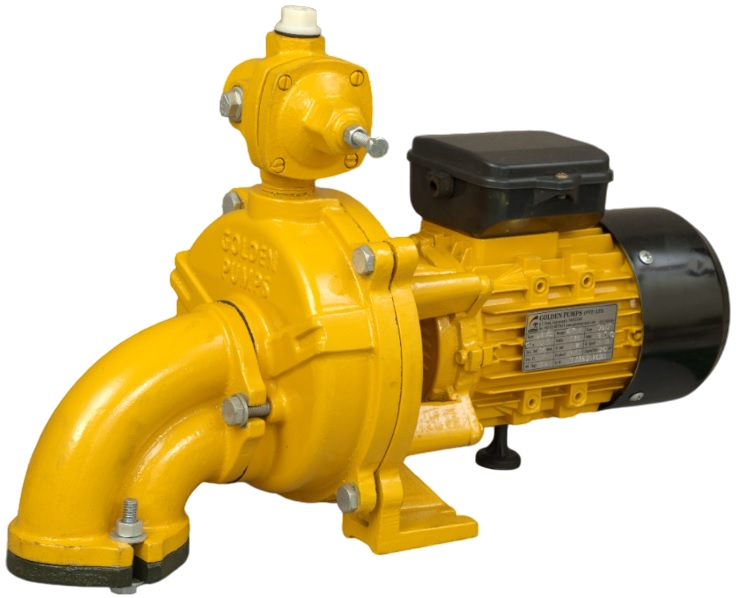

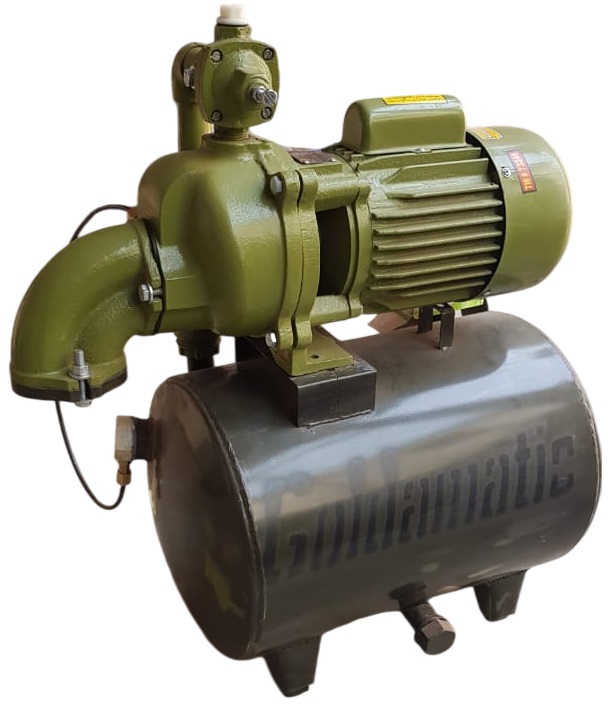

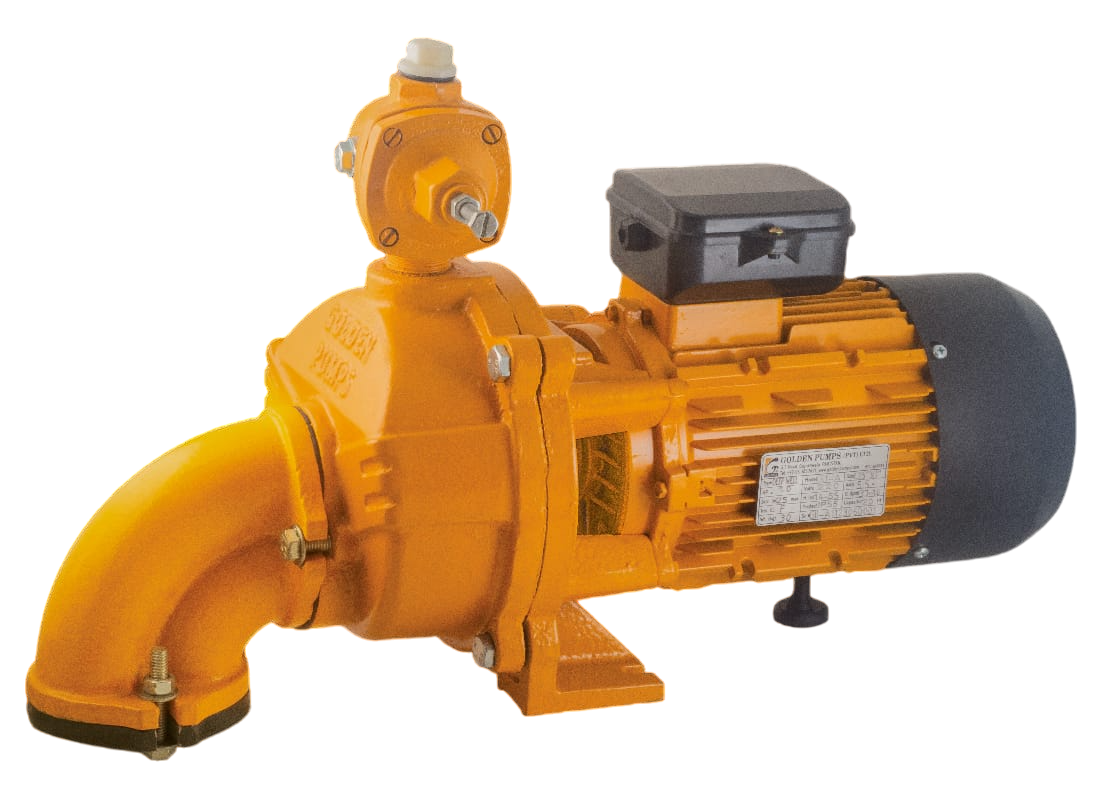

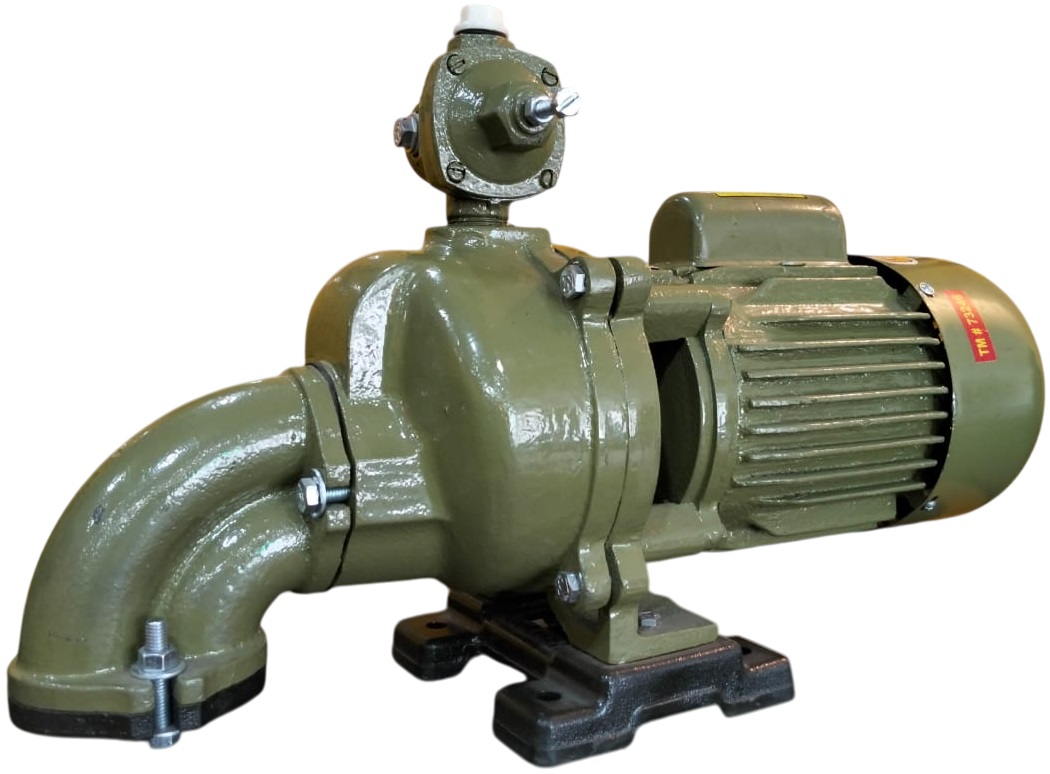

This series of pumps are close coupled self-priming pumps is particularly suitable for pumping water from deep wells. The deep well self priming pumps have the capacity Of lifting water to a maximum of 38 meters.
The pump is located on the surface with the injector immersed into the well. The delivery of the fluid generated by the impeller is conveyed to the outlet, the delivery is sucked, by means of a piping through the ‘venturi system’ connected to the suction chamber, which gives the necessary depression to the suction of the fluid where the injector is immersed in.
The fluid sucked by the injector gets mixed in the venturi diffuser with the recycling fluid, coming from the injector body, consequently the fluid pressure increases and it is sucked by the pump through a piping.
